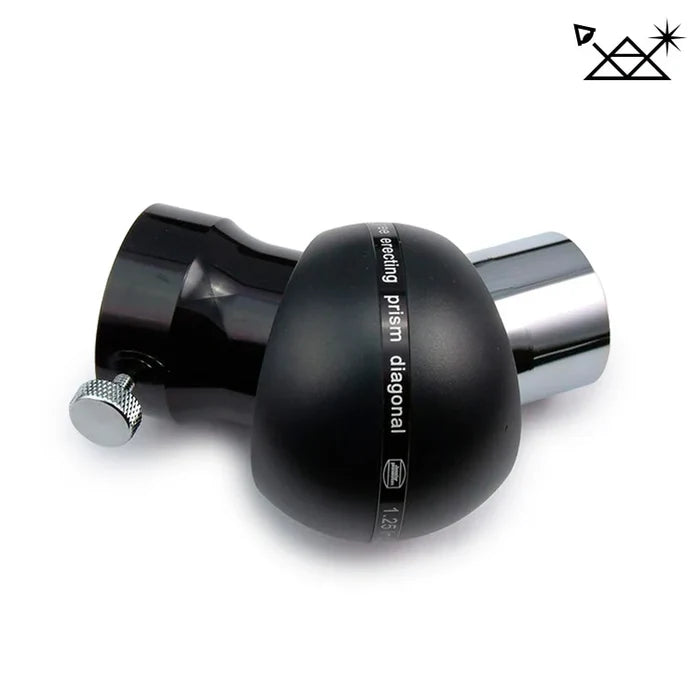

Baader 1¼" Amici-Erecting-Prism 45° with 24mm Free Aperture (2956150)
Baader 1¼" Amici-Erecting-Prism 45° with 24mm Free Aperture (2956150)
Regular price
$53.33 USD
Regular price
$88.89 USD
Sale price
$53.33 USD
Quantity
Couldn't load pickup availability
Baader 1¼" Amici-erecting-prism 45° with 24mm free aperture
- Much larger prism than other so-called "Erecting prisms"
- Many Erect image prisms have only 19 mm free passage opening and therefore are not suitable for terrestrial observations at low magnifications, because the field of the eyepiece is shaded by the too small prism.
- Correct image orientation
- Excellent for terrestrial viewing (for high-power astronomical viewing, choose one of our deluxe Amici star diagonals).
Technical Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2956150 |
| WEIGHT (NETTO) | 0.234 |
| OPTICAL DESIGN | Erecting Prism |
| INNER CONNECTION (LENS SIDED) | Thread, 1,4"(35mm) |
| OUTER CONNECTION (LENS SIDED) | Barrel, 1¼" |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Clamp, 1¼" |
| REFLECTION SURFACE | Total reflection |
| AR-COATING | Multi-Coated (MC) |
| IMAGE ORIENTATION | Erect image, Non-reversed |
| OPTICAL LENGTH (MM) | 99 |
| CLAMPING SYSTEM | Screw clamps |
| DEFLECTION ANGLE | 45° |
| INNER DIAMETER / CLEAR APERTURE (MM) | 24 |
In the Box
Baader 1¼" Amici-erecting-prism 45°
Warranty & Manual
Baader 2-year Warranty
